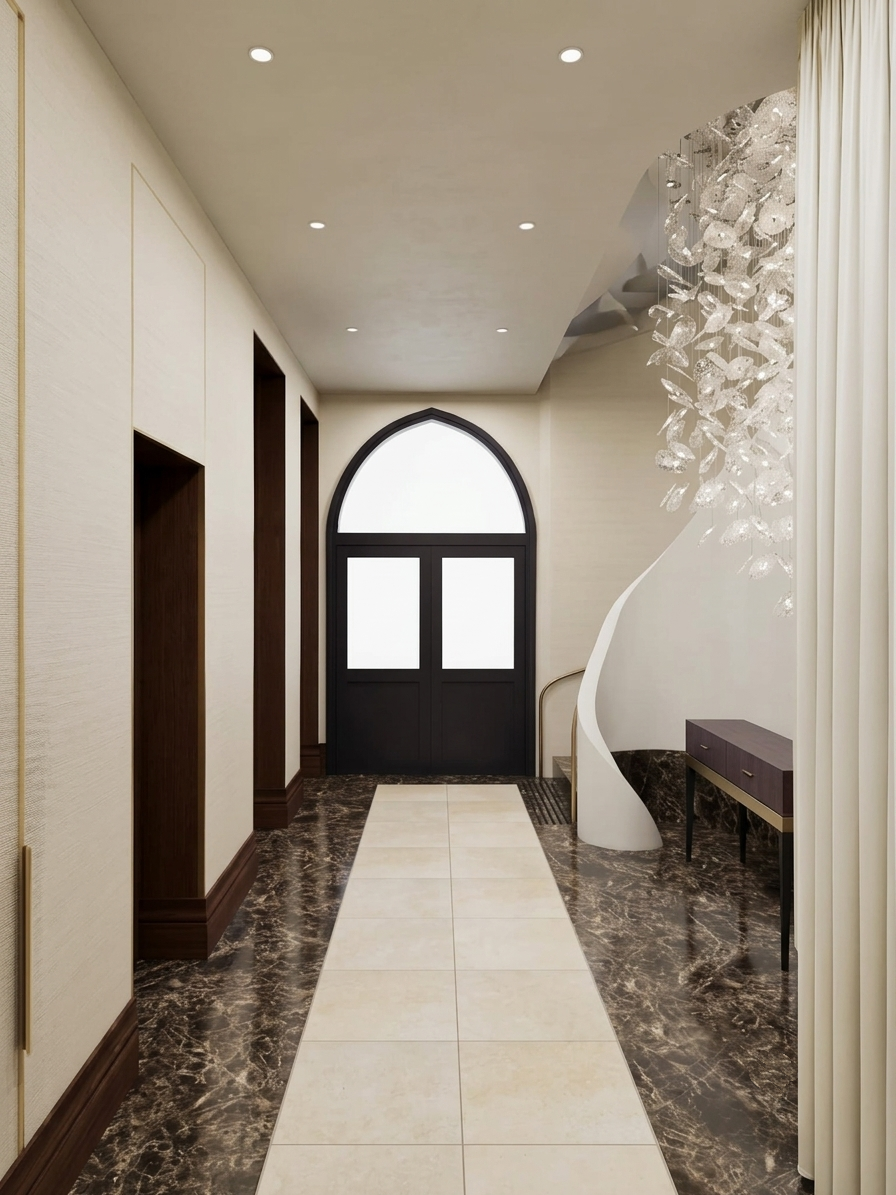

High-end marble commercial tiling installation on Collins Street in Melbourne — This image shows the finished marble floor on our Collins Street commercial tiling project. The clean layout, tight finish, and natural stone variation show why planning, set-out, and material selection matter on high-end commercial tiling jobs.

Why high-end commercial tiling is more than expensive tiles

High-end commercial tiling is not defined by tile price alone. In Melbourne showrooms, foyers, offices, amenity areas, retail spaces, and premium hospitality fit-outs, the result is judged on finish quality, alignment, durability, movement control, slip performance, and how well the floor still presents after heavy use. Current Australian guidance for ceramic and stone installation focuses on preparation, fixing, grouting, and movement joint detailing, which is a reminder that premium tile installation is a system, not a product choice. [2]

A high-end commercial floor can look simple on the surface. Behind that finish are decisions about substrate preparation, tile calibration, set-out, movement joints in tiling, adhesive bed thickness, coverage, grout joint width, and protection after handover. ARDEX notes that differential movement can be reduced by dividing large tiled areas into smaller sections with movement joints, and that joint locations may also be used to create symmetry in the tile pattern. That is exactly the kind of decision experienced commercial tilers Melbourne builders rely on need to make before the first tile is fixed. [3]

At Capstone Tiling, this is where premium commercial tile installation either starts well or starts wrong. The job is not just to lay stone or porcelain neatly. It is to make early decisions that protect the design intent and reduce the risk of cracking, lippage, staining, drummy tiles, detachment, and costly rework. [4]

What to check before installation

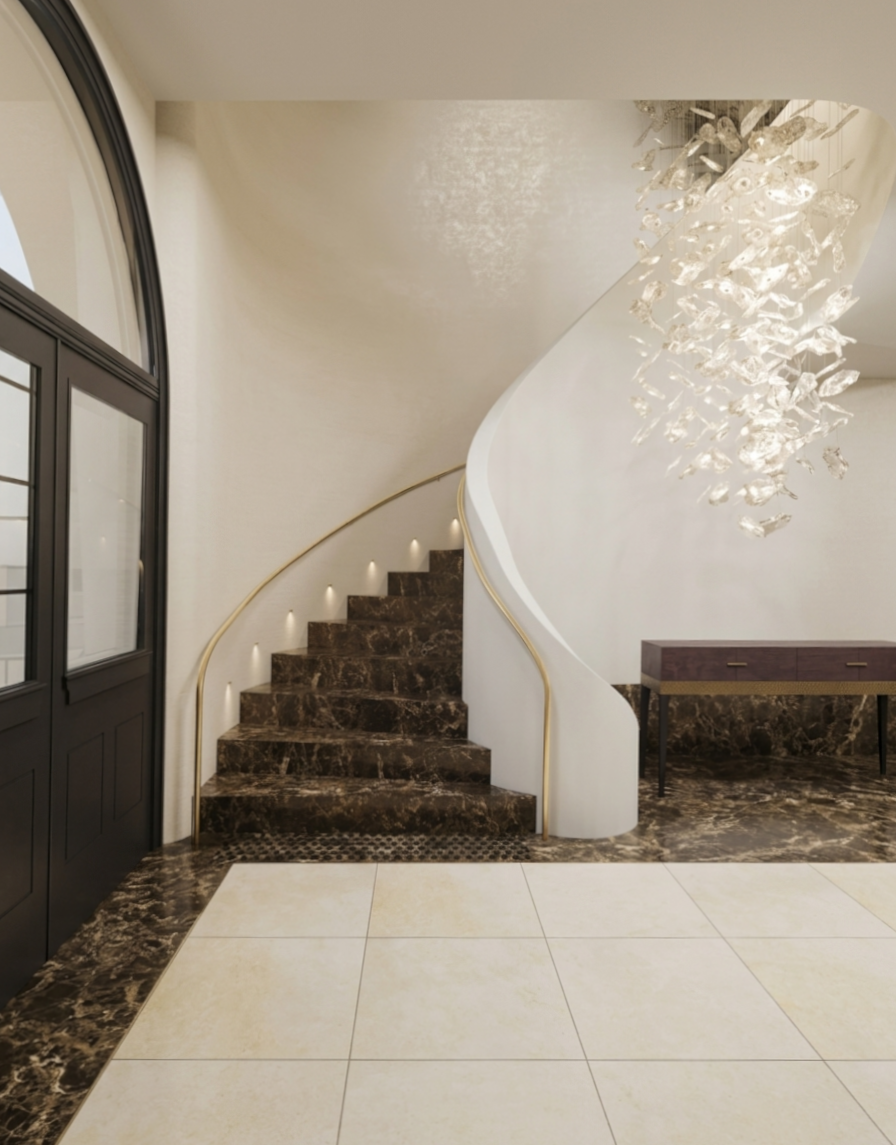

Natural stone marble floor installation for a commercial space in Collins Street Melbourne — Natural marble creates a premium finish, but it needs more care than standard porcelain. On this project, tile selection, adhesive choice, grout joint planning, and protection during the fit-out all played a role in the final result.

Substrate assessment and preparation come first. Manufacturer guidance for tile and stone systems is consistent on the main point, the substrate must be structurally sound, dry, solid, stable, clean, and free from contaminants that act as bond breakers. MAPEI states that timber or wood-based substrates must be prepared to relevant standards, and RLA states that surfaces must be sound, dry, and free from movement, oil, dust, grease, wax, curing compounds, paints, and loose contaminants. RLA also notes maximum plane variation limits in the substrate and minimum cure periods for concrete and render in its StoneSet technical data sheet. [5]

Timber substrates need more caution than a stable concrete slab. MAPEI says AS 3958.1 specified maximum deflection of L/360, and that some stone tiles are more movement-sensitive and should be restricted further to L/480, with advice sought from the tile supplier. The same MAPEI timber system says the substrate is ideally prepared with a ceramic tile underlay or fibre-reinforced levelling compound before tiling, and that proprietary sheeted materials should be checked with the manufacturer for tile-underlay suitability. In practice, that means a natural stone or marble floor over timber may warrant structural review, the right sheet flooring, a decoupling layer or underlay, deformable adhesive, and careful movement joint planning before the layout is locked in. [6]

A decoupling layer can be critical where substrate movement and tile performance need to be separated. ARDEX describes its UI 740 uncoupling membrane as suitable over timber or concrete substrates and says it helps prevent grout joint and tile damage from movement and deflection in high-stress, high-traffic settings such as shopping centres, airports, office buildings, hospitals, and car showrooms. Movement joints are essential because tile, mortar, and substrate all expand and contract at different rates, and prefabricated movement profiles can help manage that movement while protecting tile edges. [7]

Tile sourcing and tile quality need attention well before install day. Beaumont Tiles explains that tiles are produced in batches and that shade can vary between batches, and recommends checking tiles as soon as they are delivered, avoiding mixed batches, and ordering at least 10 percent extra for breakages and future repairs. RLA also warns that natural stone can vary between batches and suppliers, and recommends checking with the stone supplier before choosing the adhesive and testing a small area for moisture sensitivity. On a premium commercial floor, that means product approval is not complete when a sample board is signed off. The actual delivered material still needs to be checked for batch, shade, size, edge condition, and visible defects before the set-out is finalised. [8]

Natural stone tiling and marble tiling need another level of planning. Stone has natural variation, and project teams should expect differences in veining, colour range, and character rather than assuming factory-made uniformity. The Natural Stone Institute highlights the importance of understanding natural characteristics and colour range during supply and design coordination, and its care guidance shows why porosity, staining, sealing, and cleaning all matter after installation as well. That is why premium natural stone jobs should include sample approvals, dry-lay review where needed, and clear written sign-off from the builder, designer, supplier, and installer on what is acceptable variation before fixing starts. [9]

An 18 mm marble tile behaves differently from a standard porcelain tile. The extra mass changes handling, bed thickness, coverage, and lippage control. Edge damage is more costly and more visible. Moisture-sensitive stones can also react badly to the wrong adhesive. RLA StoneSet is marketed as a moisture-sensitive stone adhesive, classed C2S1FTE, and is described as suitable for commercial applications, large-format tiles, and some low to medium dimensionally sensitive Class A stones. The same data sheet also says it is not suitable for some moisture-sensitive stones such as green marble or some limestones classified as Classes B or C, and recommends checking with the stone supplier and contacting the manufacturer before use over waterproofing membranes. That is the real lesson for premium stone work, even a high-performance adhesive still has to be matched to the actual stone, substrate, site conditions, and system build-up. [10]

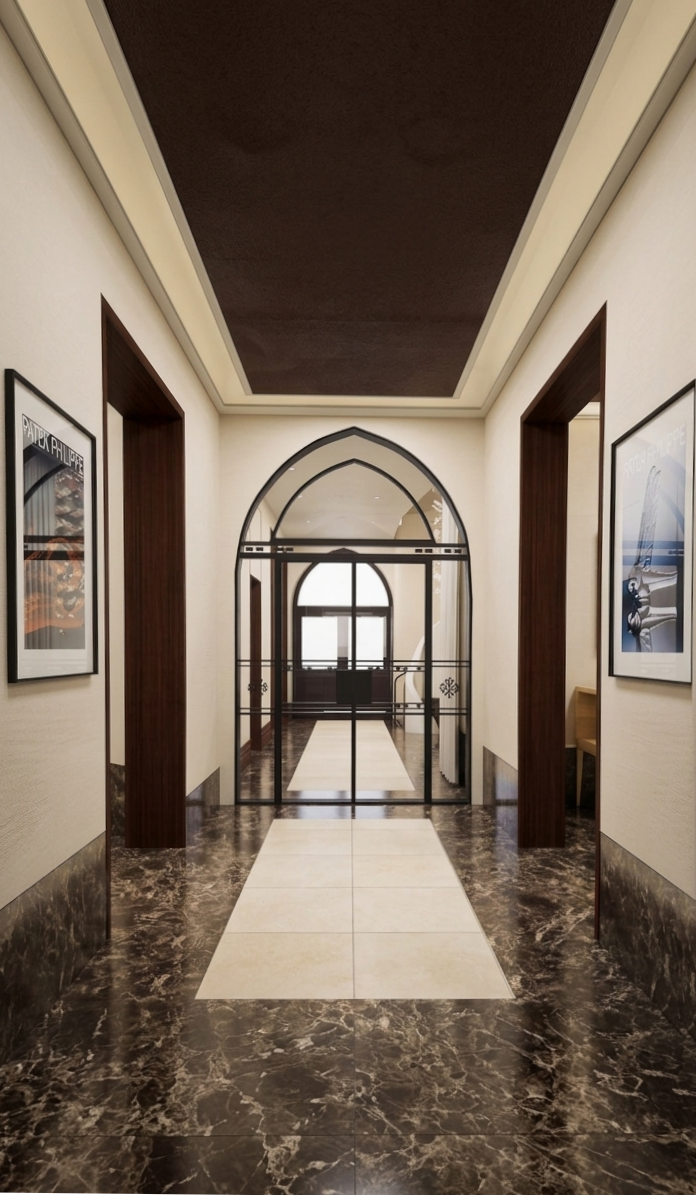

High-end commercial marble tiling set-out in Melbourne showroom or foyer — A high-end marble floor depends on more than the tile itself. Set-out affects symmetry, cuts, movement joint locations, transitions, and how the floor looks once furniture, joinery, and other finishes are installed.

On one of Capstone Tiling’s high-end stone projects, RLA StoneSet C2S1FTE was selected as an example of the type of high-performance cementitious adhesive that may suit demanding stone work. But the product choice did not remove the need for supplier checks. MAPEI’s timber substrate guidance says some natural and engineered stones can warp or stain, and recommends consulting the manufacturer or supplier and following the product data sheet strictly. For premium tile installation, written confirmation from the stone supplier and adhesive manufacturer is not paperwork for its own sake. It is part of risk control. [11]

Expansion joints and movement joints are one of the biggest technical issues in high-end commercial tiling. HIA’s public summary of AS 3958:2023 says movement joints generally have a minimum width of 6 mm, must be carried through at structural joints, and should be used at perimeters and at intermediate spacing on larger floors. Its summary says internal floors need intermediate joints at not more than 4.5 m where a floor dimension exceeds 9 m, and also at 4.5 m where direct sunlight affects floors over 6 m. External floors require 4.5 m spacing in any dimension. [12]

That guidance becomes hard on premium commercial floors where the technical joint grid clashes with the visual set-out. ARDEX notes that movement joints can also be located to provide symmetry to the joint layout and tile pattern. That matters on marble foyers, retail floors, or car showrooms where a joint cutting across a central axis, bookmatch line, or stone module can weaken the look of the whole floor. But ignoring movement is worse. Schluter states that if movement is not accommodated, the resulting stress can crack grout and tile and cause delamination. LATICRETE makes the same point, movement is natural in tile and stone installations and must be accommodated to prevent failure. On some projects, the answer is careful joint positioning. On others, it is the use of proprietary movement joint profiles in metal, stainless steel, aluminium, or even brass-finish details where they suit the architecture and traffic demands. Progress Profiles, for example, makes movement joints in brass and stainless steel for prestige mortar-laid floors and higher-load environments. [13]

Layout planning and set-out should be resolved before procurement is final. Column lines, doorways, lift lobbies, floor wastes, changes in level, out-of-square walls, drainage falls, and transition strips all affect the final visual outcome. On paper, a 1 mm grout joint often looks cleaner than a 2 mm joint. On site, that choice depends on tile calibration, stone edge quality, warpage, substrate movement, grout product, and the tolerance built into the system. ARDEX publishes fine grout products that suit 1 mm to 4 mm joints and general-purpose flexible grout for 1 mm to 8 mm joints, which confirms that 1 mm joints are possible in some systems. But MAPEI’s grout guidance also explains why tile joints matter, wider joints reduce the stiffness of the tiled surface, reduce the effect of dimension differences and steps between tiles, and help the installation tolerate small movements in the substrate. In stone or timber-substrate situations, a 2 mm joint often gives the installer more working tolerance without materially changing the appearance. [14]

Grout selection also needs to match the project, not just the colour schedule. ARDEX’s range distinguishes between fine unsanded grout for 1 mm to 4 mm joints, flexible cementitious grout for 1 mm to 8 mm joints, larger-joint products, and epoxy grouts for areas with high hygiene or chemical resistance requirements. MAPEI also notes that a sample area is worth doing to check cleanability and get designer approval. So if a supplier or designer nominates a grout colour or joint width, the installer should still confirm that the grout is suitable for the tile, the joint size, the substrate system, the cleaning regime, and the expected movement in service. [15]

Waterproofing matters in bathrooms, end-of-trip facilities, commercial kitchens, amenity areas, and other wet spaces. AS 3740:2021 is the waterproofing standard for domestic wet areas, and HIA states that its guide explains changes introduced through NCC 2022 and AS 3740:2021. The Victorian Building Authority webinar notes that NCC wet area provisions apply across different building classes, and shows that for Class 2 to 9 buildings, floor wastes must be recessed into the floor. The same VBA material summarises updated wet-area details such as full shower wall waterproofing to 1800 mm above the floor substrate and floor waste falls in the range of 1:80 minimum to 1:50 maximum in relevant applications. For commercial wet areas in Victoria, that means the tile finish cannot be separated from waterproofing design, drainage detailing, and project-specific compliance advice. Where a system sits outside a Deemed-to-Satisfy path, the VBA fact sheet says a performance solution or other approval path may need to be discussed with the relevant building surveyor. [16]

Slip resistance and safety should be specified early, not after tile approval. Forbo’s Australian summary says slip resistance in Australia is assessed under AS 4586, using classifications such as P ratings and R ratings. The HB 198 guidance reproduced by National Tiles shows how those ratings change by location. It lists P3 or R10 for many commercial entries and wet internal areas, P3 or R10 for office, hotel, and shopping-centre toilet facilities, and P5 or R12 for commercial kitchens and loading docks. The same guide also warns that maintenance, contamination, pedestrian traffic, slope, lighting, and handrails all affect real-world safety. So the owner’s responsibilities do not end when the tiles are installed. Cleaning methods, contaminant control, mats, and maintenance matter to ongoing slip performance. [17]‍ ‍

What quality controls are required during installation and after handover

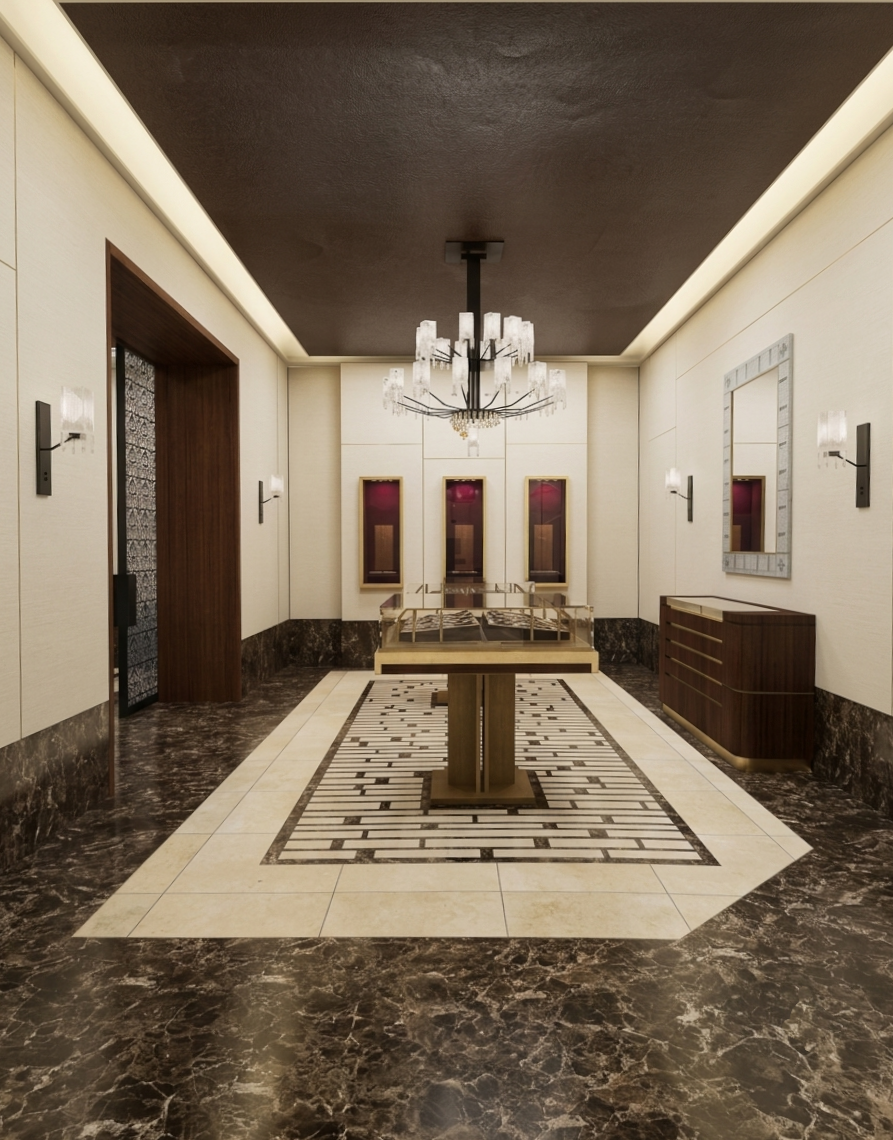

Close-up detail of marble tiling finish on a Collins Street commercial project — On natural stone projects, small decisions around joint width, lippage control, edge protection, cleaning, and grout colour can affect the final appearance.

Quality control during installation is what turns a good specification into a good floor. Start with the basics. Check delivered tiles before fixing. Beaumont recommends checking boxes from different batches before setting out and making sure the shade is acceptable and the quantity is enough to finish the job. On large format tile installation and stone work, adhesive coverage also needs to be checked in real time, not assumed. MAPEI recommends periodically lifting tiles to assess coverage and reassessing the trowel and method if coverage is not acceptable. ARDEX says flexible substrates such as decoupling mats require deformable adhesives, larger notched trowels, a continuous adhesive layer at least 3 mm thick under the tile, and at least 90 percent adhesive contact to both tile and substrate. It also recommends back-buttering for tiles larger than 400 mm. [18]

Mock-ups help avoid expensive arguments later. They can confirm grout colour, grout texture, movement-joint appearance, acceptable stone variation, cleanability, and lippage expectations under real lighting. That is important because Master Builders WA notes that lippage can be accentuated by reflective surfaces and light angle, and that tile warpage can influence the final appearance. On premium marble or polished porcelain floors, the mock-up is often where the project team realises that a tighter joint, a different bond pattern, or a revised movement-joint location looks better in reality than it did in a drawing. [19]

Commercial project coordination matters as much as workmanship. A high-end commercial tiling job can still fail if material arrives late, access is not controlled, other trades walk on fresh work, the floor is not protected, or curing time is compressed to recover a delayed program. RLA promotes StoneSet for situations where rapid drying or fast grouting is needed, which shows how programme pressure influences product choice. But fast-setting products are not a substitute for planning. Site access, staging, delivery sequence, noise and dust controls, protection, and realistic curing windows should be agreed before tiling starts, especially in staged fit-outs where surrounding trades are still active. [11]

Long-term performance depends on maintenance. The Natural Stone Institute recommends neutral cleaners or stone soap, frequent dust mopping, prompt spill clean-up, and avoiding acidic products such as lemon or vinegar on calcareous stones because they may dull or etch the surface. It also notes that sealing does not make stone stain-proof, only more stain-resistant, and that some stones may not require sealing at all. For commercial owners, that means the handover should include a maintenance plan, approved cleaning products, guidance on re-sealing if required, and instructions on what not to use. A premium floor that is cleaned with the wrong chemicals can deteriorate quickly, even if the installation itself was technically sound. [20]

This is why experienced commercial tilers matter. Premium commercial tiling in Melbourne asks for more than neat laying. It asks for technical judgement before installation, supplier communication, manufacturer confirmation, movement planning, mock-ups, coverage checks, and disciplined coordination with the rest of the site team. For builders, architects, designers, developers, and property owners, the value is simple. You get a better chance of achieving the finish you drew, the performance you specified, and the lifespan you expect. For Capstone Tiling, that is the real point of high-end commercial tiling, solve the technical problems early so the final floor looks right and stays right. [21]

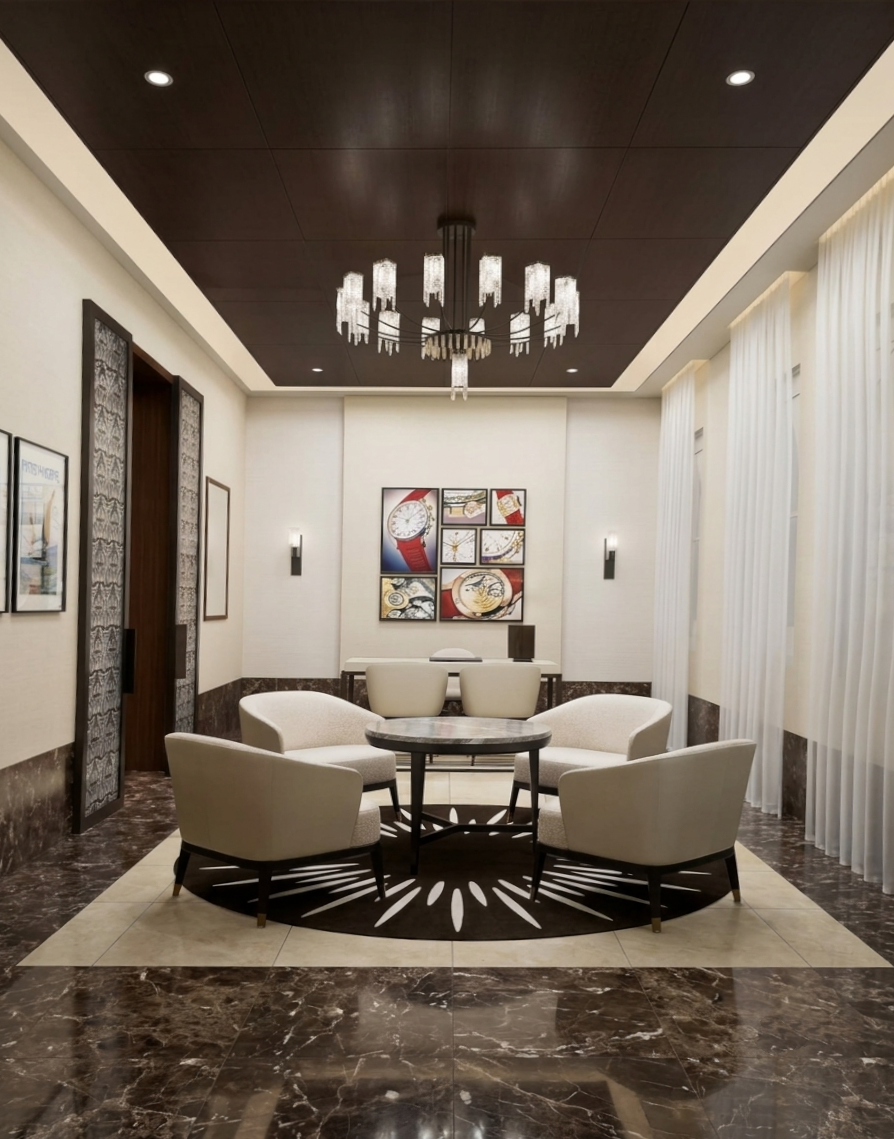

Commercial marble floor installation protected during Collins Street fit-out works — Finished commercial floors need protection after installation. Even a well-installed marble floor can be damaged by other trades, tools, dust, foot traffic, or early loading before adhesives and grout have cured properly.

FAQ

What makes high-end commercial tiling different from standard commercial tiling?

High-end commercial tiling usually has tighter visual expectations, more demanding materials such as natural stone or calibrated porcelain, higher presentation requirements, and less tolerance for movement, lippage, staining, or layout errors. The installation standard and movement-joint guidance show that substrate prep, fixing method, and joint planning are central to performance, not just tile cost. [22]

‍Can natural stone or marble be installed over timber substrates?

Yes, in some situations, but the system needs more checking than it would over stable concrete. MAPEI’s timber substrate guidance says wood-based substrates must be sound and stable, stone may need tighter deflection control than ceramic tile, and the build-up may need a tile underlay or levelling layer. A decoupling system may also be appropriate where movement and deflection are concerns. [23]

Is a 1 mm grout joint too tight for premium commercial floors?

Not automatically. Some grout systems are rated for 1 mm joints. But suitability depends on tile calibration, edge quality, warpage, substrate stability, stone sensitivity, and movement in the system. MAPEI explains that tile joints help reduce stiffness and movement stress, which is why a 2 mm joint is often the safer choice on demanding floors, especially with stone or timber substrates. [14]

‍Are movement joints really needed on internal commercial floors?

Yes. Public guidance summarising AS 3958:2023 says movement joints are needed at structural joints, perimeters, and at intermediate spacing on larger floors. Ignoring them increases the risk of cracked grout, cracked tiles, and delamination. [24]

What slip rating should a commercial tile floor have?

There is no single answer for every location. AS 4586 classifications and HB 198 guidance match ratings to use conditions. Public guidance shows many commercial entries and wet internal areas at P3 or R10, while commercial kitchens may need P5 or R12. The final choice should consider contamination, maintenance, traffic, and cleaning, not just the tile sample. [25]

Does sealing marble remove the need for careful cleaning?

No. The Natural Stone Institute says sealing makes stone more stain-resistant, not stain-proof. It also recommends neutral cleaners and warns that acidic products can dull or etch calcareous stone. [26]
